Marconi Line - wood aluclad window.
Shield against bad weather conditions.
Marconi Line Specs Find out more about Marconi windows specs.
Options With our wide range of options for your windows you can create something distinct.
Size Restrictions Find out what size of the windows are possible to make in Marconi system. Please note, it may be possible for us to make a slight exception to these restrictions.

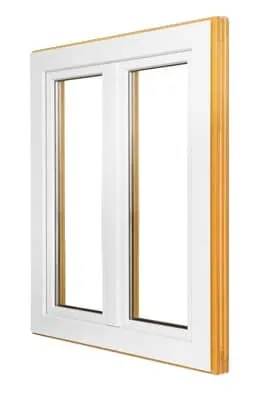

Marconi AluClad
Aluminium Clad window combine the benefits of a maintenance free external surface together with the beauty of the finished engineered timber internally. These two materials are brought together in perfect harmony obtaining highly sophisticated product.
This Aluminium Clad window system is especially useful in extreme climate conditions. Exposed areas at high altitudes and coastal locations experience much harsher weather and therefore would profit from such a window.
Marconi system, which is a tilt & turn inward and outward opening window, dedicated mostly to clients in Continental Europe.
Marconi system can also be offered with triple glazing. These units achieve a centre pane ‘u’ value of 0.6 W/m2K, offering substantially lower emission values.
Specification

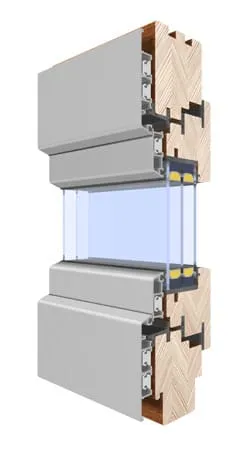

- Construction – Single-frame, frame and sash cross-section: 68 x 80 mm.
- Material – Wood types: pine, mahogany, meranti, oak.
- Sound insulation – Sound reduction for the standard unit Rw = 31 dB. Glazing unit with improved sound absorption (option) for Rw = 34-42 dB, depending on a selected glazing unit.
- Uw value – The heat transfer coefficient for the window with the test dimension is Uw -1.3 W / m2K
- Glazing – Double-glazing, single-chamber (4-18Ar-4), 26 mm unit, the heat transfer coefficient Ug = 1.0 W / m2C (BS EN-674), inter-pane cavity filled with argon.
- Triple-glazing, twin-chamber (4-10Ar-4-10Ar-4), 32 mm unit, the heat transfer coefficient Ug = 0.8 W / m2K (EN-PN 674), inter-pane cavity filled with argon.
- Triple-glazing, twin-chamber (4-4-10Kr 10Kr-4), 32 mm unit, the heat transfer coefficient Ug = 0.6 W / m2K (EN-PN 674), inter-pane cavity filled with krypton.
- Ornamental glass, safe, with sun protection properties – option.
- Spacer – Aluminum Spacer – standard.
- Warm edge spacer – option.
- Sufrace treatment – Transparent paints according to Sigma Coatings colour chart. Opaque paints according to RAL and NCS colour charts. 4 coating system, impregnation, primer, interlayer, topcoat.
- Cladding – Aluminum cladding cut 45° Mechanically gripped or welded. Colors according to RAL color cart. Cladding supplier Aluron.
- Handles – Hoppe Secustic Atlanta handle in white, silver, olive.
- Key-lockable handle in colors as above – option.
- Handle with a button in colors as above – option.
Choose from a wide range of options to personalise you project.
Window Sizes
| Hinge Type | Standard | Concealed | Power Hinge |
|---|---|---|---|
| Min Frame Width | 450 mm | 482 mm | |
| Max Frame Width | 1521 mm | 1521 mm | up to 1300 mm |
| Min Frame Height | 402 mm | 402 mm | |
| Max Frame Height | 2450 mm | 2450 mm | up to 3100 mm |
